Wireshark Configuration Profiles

CDRouter includes preset profiles for viewing packet captures in the Web Interface. These include different columns and filters that can help you fine-tune your workflow. For example, the included Wi-Fi profile changes the columns to include packet fields specific to Wi-Fi, like “SSID” and “PHY type”.

The active profile can be changed using the profile switcher on the bottom right. Please note that TLS decryption in the packet view is only enabled on the Default profile.

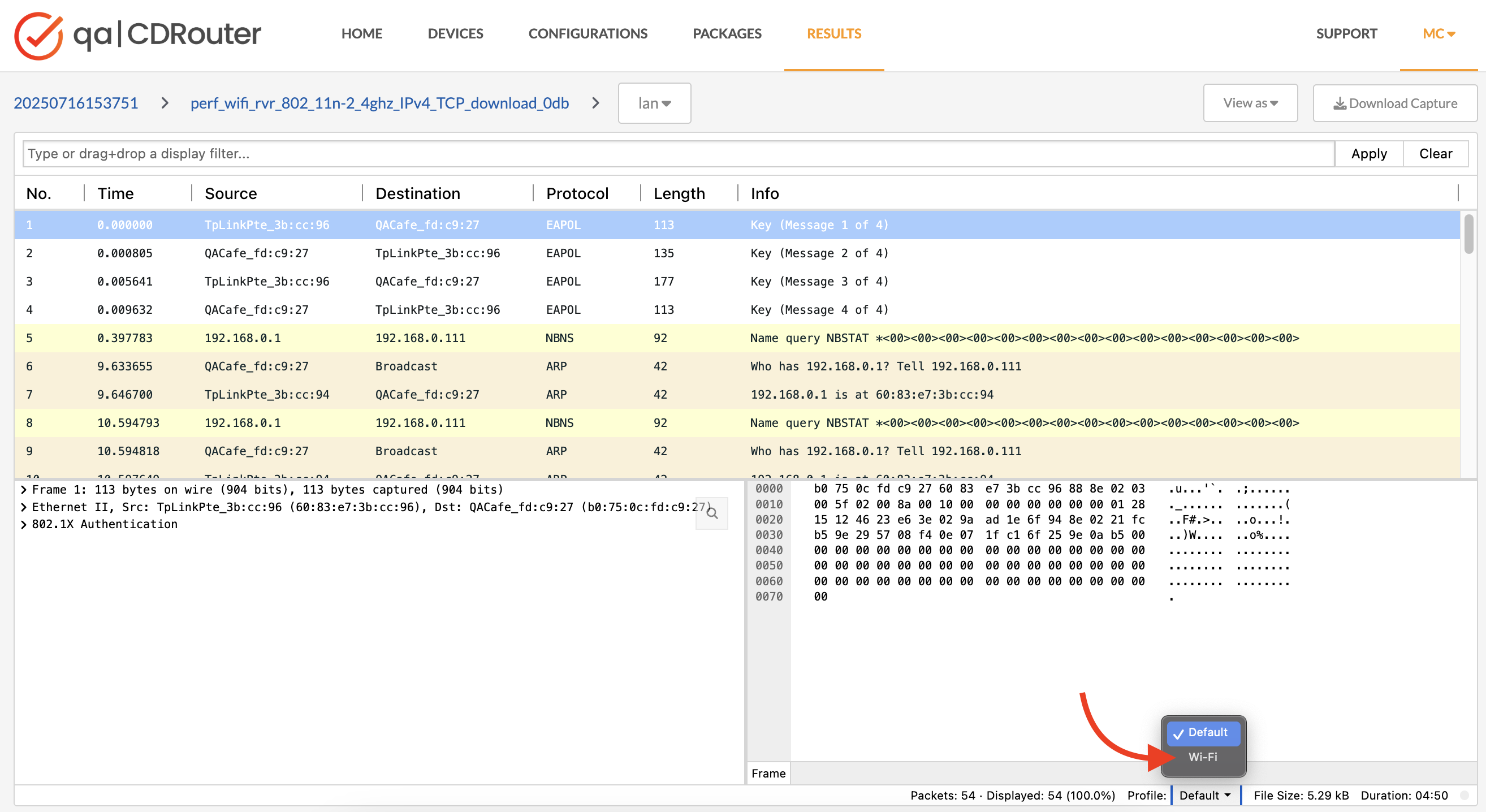

A screenshot showing the profile-switch dialog in the lower-right-hand corner of the CDRouter user interface

Users can’t currently change or add custom configuration profiles. Have an idea for another configuration profile? Contact support@qacafe.com
